50+ YEARS OF INNOVATIONS

Roto Pumps Ltd. is celebrating more than 50 years of success in moving variable fluids across the globe. We are pioneer in manufacturing Positive Displacement Pumps ranking among the top 10 global players. With state-of-the-art integrated manufacturing facility, we continuously endeavor to increase our product basket to cater to a wider spectrum of industries and applications.

Beside this our core strength lies in focused R&D and robust marketing and sales network spread across 5 continents. Our plant are ISO 9001, ISO 14001 and OHSAS 18001 certified.

  • Strong Presence in
    50+ countries
  • Association with more than
    10,000 customers
  • More than 250,000
    pumps installed, setting us apart from the league

One of the most dynamic designs for driving the flow of variety of liquids, Progressive Cavity Pumps can be customized to efficiently handle liquids with different viscosity levels and chemical properties. The Progressive Cavity Pumps comprise of a precision mechanized single external helix metallic rotor and double internal helix elastomer stator. As the rotor turns within stators, the cavity progresses from suction to discharge along with fluid.


Pumping Principle

Progressive Cavity Pumping Principle

The pumping element comprises of a precision machined single external helix metallic rotor, and a double internal helix elastomer stator. Due to the special profile of the rotor and stator set, a sealing line is formed along the axis of the rotor which is maintained at both static and dynamic conditions. As the rotor turns within the stator, these cavities progress from the suction to the discharge end of the pump carrying the fluid.



Features & Benefits

Positive Displacement
Because of single rotating element, progressive cavities are generated which deliver a uniform, metered and non-pulsating flow. The developed head is independent of the rotational speed, where as the capacity is proportionate to the speed.

Self priming
Inherently self-priming, the pumps can work on snore and do not require a foot valve.

Non-Clogging
Can handle solid in suspension or media containing a high percentage of solids.

Low NPSH Requirement
Suction lift capabilities of up to 9.5mWc and effective in high vacuum conditions.

Low Internal Velocity
Minimum degradation of shear-sensitive media, and can also handle highly viscous materials having pseudo-plastic characteristics.

Reversible
Due to the reversible rotation capabilities, Progressive Cavity Pumps can perform with equal efficiency in either direction.

Silent Running
Rotors turn inside a resilient stator and thus generate little noise.

Separate Bearing Housing
Fluids can be pumped without no contamination.



Xtra Value

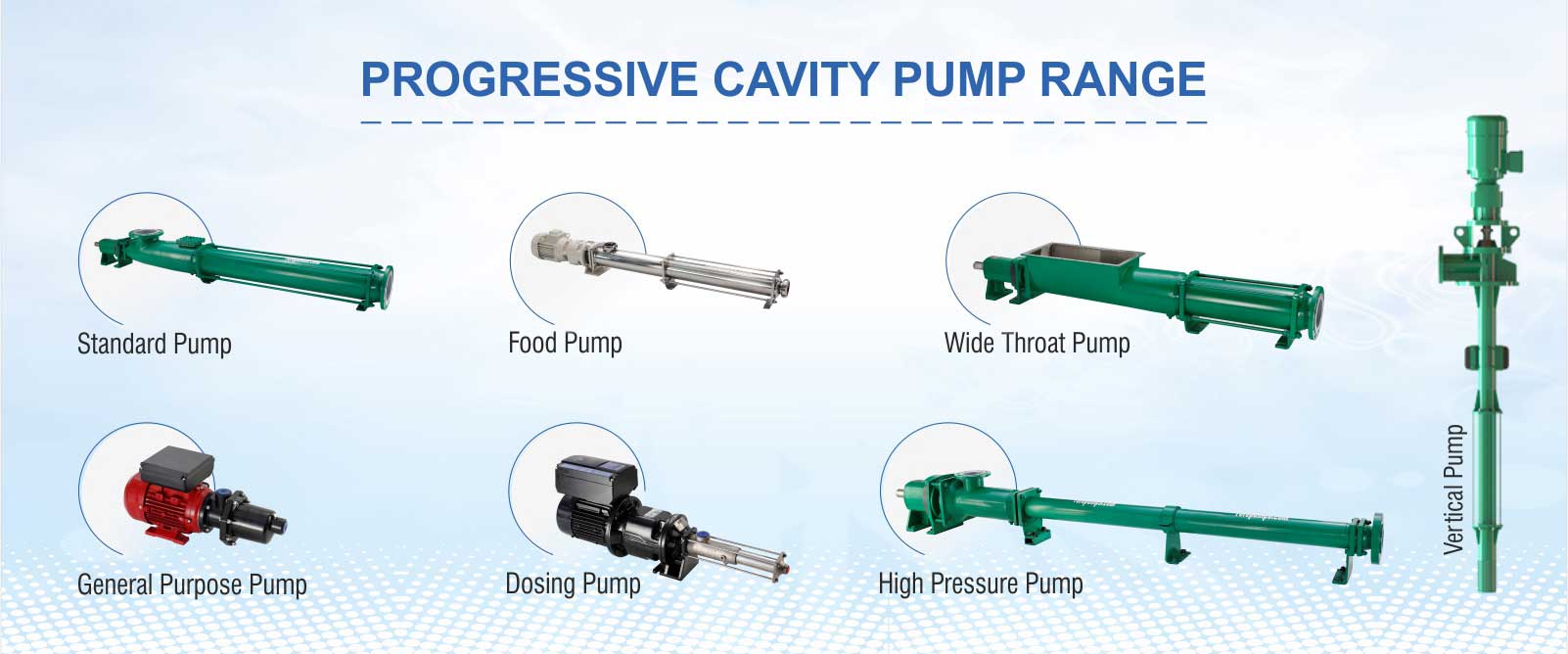

Progressive Cavity Pump Range


Installations

Norway

Marine OEM

Australia

Beverage

India

Shipping

Australia

Wastewater

Featured Products

Roto Progressive Cavity Pumps are designed for continuous or intermittent transfer duties in innumerable applications for varying viscosities, abrasiveness & even fluids with high solid content. These pumps have single rotating element which helps in delivering uniform, metered and non-pulsating flow of media.

(These pumps widely confirm to API 676, 3rd edition and are ATEX and CE certified.)

Performance Range

  • Capacity: up to 500m³/hr or 2200 GPM
  • Pressure: up to 72bar or 1044 PSI
  • Viscosity: up to 30,00,000 cSt

Roto Twin Screw Pumps are designed for handling wide variety of clear lubricating/non-lubricating as well as aggressive liquids. Roto's unique double profile of the screw spindles contributes to a higher volumetric efficiency and provides uniform flow with Zero axial thrust. These pumps are self-priming capable of handling entrapped air/vapour/gas due to positive displacement action and have inbuilt relief valve designed to bypass up to 100% capacity.

(These pumps widely confirm to API 676, 3rd edition and are ATEX and CE certified.)

Performance Range

  • Capacity up to 1500m³/hr or 6600 GPM
  • Pressure up to 40bar or 580 PSI
  • Viscosity up to 1,00,000 cSt

Horizontal Internal Bearing

Horizontal External Bearing

Vertical Twin Screw Pump

Rotoʼs external gear pump with its innovative design is compact, efficient and ensures longer service life. These pumps are having simple four piece construction, specially designed to handle thinner to thicker & even corrosive liquids with lesser or no lubrication. Roto Gear pumps are available in various materials and can also be customized for high pressure applications.

Can be offered with API 676 Stands & CE certification.

  • Performance Range
  • Capacity up to 120m³/hr or 530 GPM
  • Pressure up to 11 bar or 160 PSI
  • Viscosity up to 1,00,000cSt

Roto's range of air operated double diaphragm pumps are positive displacement pumps, driven by compressed air rather than electric motor. These innovative pumps are ideal choice for meeting your demands on high efficiency and low maintenance cost

These pumps are ideal for applications requiring low pulsation and smooth flow, are available in various materials i.e. aluminium, stainless Steel,

  • Performance Range
  • Capacity up to 60 m³/hr or 265 GPM
  • Pressure up to 10 bar or 145 PSI

Industries we serve

Roto Pumps has carved a niche for itself with its strong roots in manufacturing and engineering. The company is long known to deliver the highly efficient positive displacement pumping solutions that range from basic fluid handling applications to customized pumping solutions. Our innovative fluid engineering solutions are capable of pumping thin to highly viscous liquids, liquids with solid particles, abrasive liquids, corrosive liquids, lubricating and non-lubricating liquids, flammable or volatile liquids, hygienic liquids, shear sensitive liquids etc. Our sophisticated manufacturing plant with state-of-the-art R&D capabilities enables Roto Pumps to provide innovative fluid engineering solutions across industries. We take pride in our ability to efficiently handle 5000+ fluids in 25+ industries across the world.
